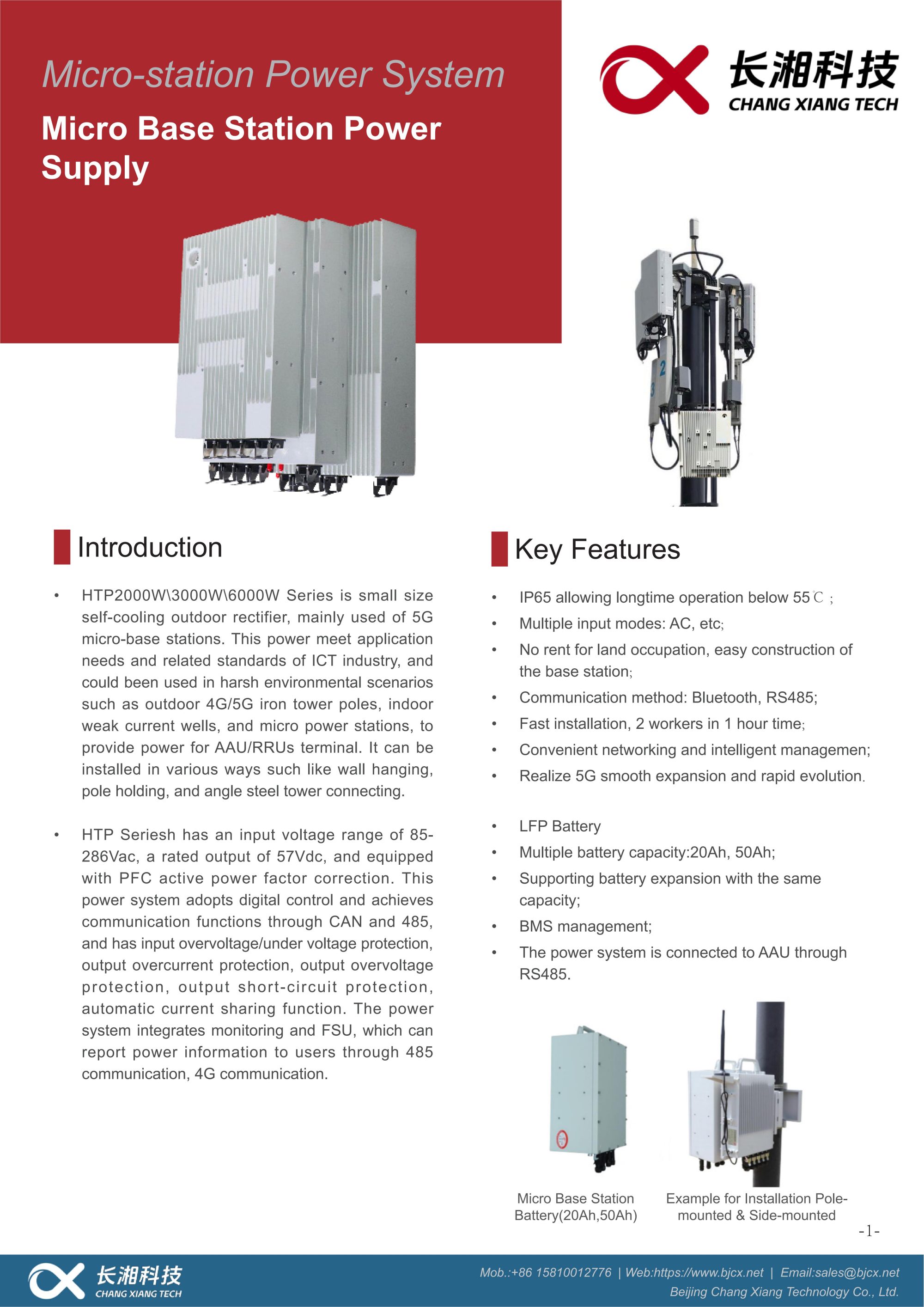

HTP2000W\3000W\6000W Series is small size self-cooling outdoor rectifier, mainly used of 5G micro-base stations. This power meet application needs and related standards of ICT industry, and could been used in harsh environmental scenarios such as outdoor 4G/5G iron tower poles, indoor weak current wells, and micro power stations, to provide power for AAU/RRUs terminal. It can be installed in various ways such like wall hanging, pole holding, and angle steel tower connecting.

• HTP Seriesh has an input voltage range of 85-286Vac, a rated output of 57Vdc, and equipped with PFC active power factor correction. This power system adopts digital control and achieves communication functions through CAN and 485, and has input overvoltage/under voltage protection, output overcurrent protection, output overvoltage protection, output short-circuit protection, automatic current sharing function. The power system integrates monitoring and FSU, which can report power information to users through 485 communication, 4G communication.

Key Features

• IP65 allowing longtime operation below 55℃ ;
• Multiple input modes: AC, etc;
• No rent for land occupation, easy construction of the base station;
• Communication method: Bluetooth, RS485;
• Fast installation, 2 workers in 1 hour time;
• Convenient networking and intelligent managemen;
• Realize 5G smooth expansion and rapid evolution.

• LFP Battery
• Multiple battery capacity:20Ah, 50Ah;
• Supporting battery expansion with the same
capacity; • BMS management;
• The power system is connected to AAU through RS485.
